Chocolate Pumping

Chocolate is an abrasive, shear-sensitive product prone to caramelising, which means that aggressive pumping could damage both the product and any materials that are in contact with it.  For this reason, we recommend low working speeds, always taking into account the type of chocolate and the sealing system being used.

Guaranteeing that the product is contained within a well-sealed pump is particularly important. For chocolate pumping applications, we offer various options (all in compliance with FDA and EC-1935/2004):

a. Lip seal: the most economical option: maximum working pressure of 4 bar. Only recommended for very fluid and relatively non-abrasive chocolates, otherwise the useful life of the seals could be very short.

b. Lip seal with automatic or manual lubricator: maximum working pressure of 4 bar.

c. Mechanical seal with quench and automatic or manual lubricator: maximum working pressure of 4 bar. It consists of single mechanical seals (SiC/SiC/Viton) with lip seal in the rear chamber.

d. Double mechanical seal with automatic lubricator: maximum working pressure limit depends on the pump model.

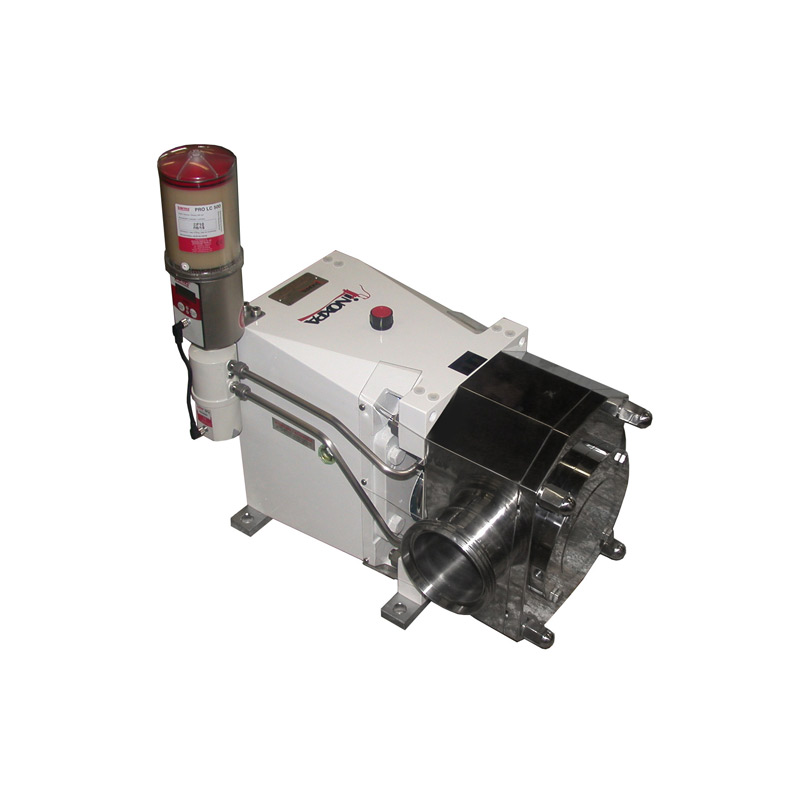

The flow of lubricating grease can be adjusted according to the requirements of the equipment being lubricated, potentially lasting up to 12 months. Hence, the friction faces of the mechanical seals will always work with clean grease between the contact surfaces rather than chocolate, which is abrasive and can caramelize, leading to rapid wear of the surfaces.

For the low-pressure options (b and c), either a manual or an automatic lubricator may be fitted. The manual option is battery powered and must be started and stopped by the operator. The automatic option works via an external power supply, hence it is possible to link it directly to the pump.

For the high-pressure option (d), only automatic lubricators are fitted. In addition, a relief valve is included to eject the grease from the chamber, avoiding any damage occurring due to excess pressure.
